Grow Lineages along Minimum Spanning Tree for B Cell Recptor Seqeuence Data

This page provides some examples of using source code version of GLaMST.

Prepare environment
Simulate data
Run GLaMST and visualize the results
Write Reconstructed Tree to File
Generate lineage tree from real data

Prepare environment

Set working directory to the upzipped folder. If your matlab does not have C/C++ compiler setup, need to first install MinGW, instructions at following link (Home->Add-Ons->search MinGW->install) https://www.mathworks.com/help/matlab/matlab_external/install-mingw-support-package.html

restoredefaultpath;
addpath lib
addpath src
mex src/editDist_only.cpp
mex src/backtrace.cpp

Building with 'Microsoft Visual C++ 2013 Professional'.
MEX completed successfully.
Building with 'Microsoft Visual C++ 2013 Professional'.
MEX completed successfully.

Simulate data

Simulate a dataset that

operation_probability = [0.99 0.005 0.005];% mutation, insertion, deletion chance
sequence_length = 300; % Length of the seqeunces
num_tree_nodes = 200; % Total number of the real tree
sample_size = 100; % Number of observed nodes
rng(42); %% Fix the random seed;
[observed_sequences, true_sequences, adj, is_selected] = simulate_data_v2(...
    sequence_length,num_tree_nodes,sample_size,operation_probability);

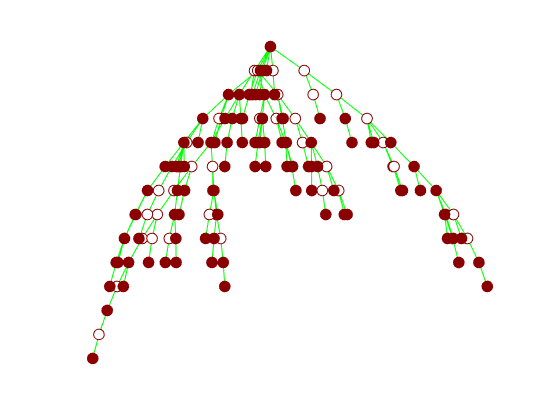

draw_hierarchy_tree(adj, is_selected');

Simulation:
    simulate a tree with 200 nodes, and 101 observed sequences (include root) ....   200
    obtained tree size: 144 nodes, 101 observed sequences.

Run GLaMST and visualize the results

This section is a example of using GLaMST. You need to pass a variable "observed_sequences" that contain a cell array of known sequences to function "reconstruct_tree_minimun_tree_size". Make sure the first sequence of "observed_sequences" should be root(G.L.). "reconstructed_nodes" is a cell array of sequences of the reconstructed tree. "reconstructed_is_selected" is the index of tree nodes that known before the reconstruction. "reconstructed_directed_adj" is the adjecent matrix that represent the hierarchical structure of the tree.

[reconstructed_nodes,mst_adj,reconstructed_is_selected, reconstructed_directed_adj] = ...
    reconstruct_tree_minimun_tree_size(observed_sequences);

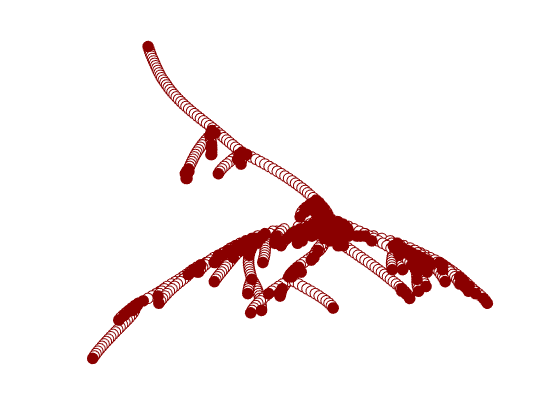

draw_hierarchy_tree(reconstructed_directed_adj, reconstructed_is_selected);

Reconstruction:
